* This product is written on it casting (Made in Poland) and we are the only distributor in the arabic republic of egypt. |
|
|
| |
|
|
| |
| |
|
|
|
|
|
C
16 bar |
DN
32-150 |
210°C* |
B
10 bar |
DN
200-900 |
A
6 bar |
DN
1000-1200 |
|
|
C
16 bar |
DN
32-150 |
210°C* |
B
10 bar |
DN
200-1200 |
|
*The maximum allowable temperature depends on the used
materials |
| |
|
|
| |
FEATURES |
- leakproofness class - A acc. to EN 12266.
- face-to-face dimension acc. to EN 558.
- flanges PN10/PN16 acc. to EN 1092.
- sealing EPDM/ NBR/ FLUCAST/ SILICONE/ VITON/ HYPALON/ EPICHLOROHYDRIN/ NEOPREN/ BUTYL.
- discs NODULAR CAST IRON/ STAINLESS STEEL/ ALUMINIUM/ BRONZE/ ALU-BRONZE/ CAST STEEL/ DUPLEX/ SUPERDUPLEX.
- environment-friendly.
|
| |
|
|
| |
APPLICATION |
- cold and hot water installations and air installations.
- heating installations.
- shipbuilding industry.
- power engineering.
|
| |
|
|
| |
|
| |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

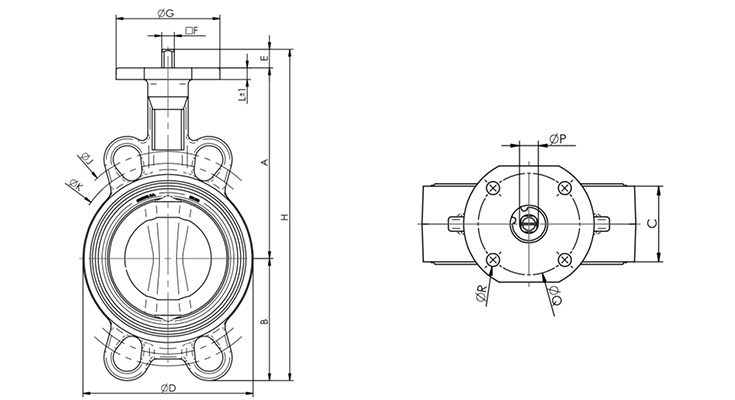

32 |
1 1/4” |
102,5 |
60,2 |
33 |
68 |
30 |
11 |
90 |
192,7 |
100 |
85 |
70 |
4xø7 |
F-07 |
|
15 |
1,50 |
40 |
1 1/2” |
110 |
56 |
33 |
76 |
30 |
11 |
90 |
196 |
110 |
95 |
70 |
4xø9 |
F-07 |
|
15 |
1,70 |
50 |
2” |
120 |
61,5 |
43 |
100 |
30 |
11 |
90 |
211,5 |
123 |
120.6 |
70 |
4xø9 |
F-07 |
|
17 |
2,40 |
65 |
2 1/2” |
135 |
69 |
46 |
108 |
30 |
11 |
90 |
234 |
145 |
127 |
70 |
4xø9 |
F-07 |
|
25 |
2,60 |
80 |
3” |
141 |
94 |
46 |
124 |
30 |
11 |
90 |
265 |
160 |
145 |
70 |
4xø9 |
F-07 |
|
28 |
3,10 |
100 |
4” |
165 |
106 |
52 |
147 |
30 |
11 |
90 |
301 |
185,5 |
165 |
70 |
4xø9 |
F-07 |
|
50 |
4,00 |
125 |
5” |
180 |
126,5 |
56 |
180 |
33 |
14 |
90 |
339,5 |
225 |
206 |
70 |
4xø9 |
F-07 |
|
85 |
6,10 |
150 |
6” |
193 |
133 |
56 |
206 |
33 |
14 |
90 |
359 |
241,3 |
229 |
70 |
4xø9 |
F-07 |
|
110 |
7,30 |
200 |
8” |
225 |
170 |
60 |
257 |
33 |
17 |
90 |
428 |
305 |
280 |
70 |
4xø9 |
F-07 |
|
140 |
11,00 |
250 |
10” |
282,5 |
210 |
68 |
324 |
23 |
22 |
130 |
515,5 |
362 |
335 |
102 |
4xø12 |
F10 |
|
270 |
20,50 |
300 |
12” |
308 |
240 |
78 |
376 |
23 |
22 |
130 |
571 |
431,8 |
394 |
102 |
4xø12 |
F-10 |
|
390 |
29,50 |
350 |
14” |
338.5 |
263 |
78 |
430 |
31 |
22 |
160 |
632,5 |
476,3 |
445 |
102 |
4xø12 |
F-10 |
|
500 |
35,40 |
400 |
16” |
380 |
308 |
102 |
485 |
31 |
27 |
160 |
719 |
540 |
510 |
125 |
4xø12 |
F-12 |
|
897 |
55,70 |
450 |
18” |
380.5 |
340 |
114 |
536 |
38 |
36 |
190 |
758,5 |
- |
- |
140 |
4xø14 |
F-14 |
|
1450 |
80,80 |
500 |
20” |
432,5 |
380 |
127 |
593 |
38 |
36 |
210 |
850,5 |
- |
- |
140 |
4xø18 |
F-14 |
|
1800 |
113,60 |
600 |
24” |
494 |
440 |
154 |
690 |
80 |
60 |
210 |
1014 |
- |
- |
165 |
4xø22 |
F-16 |
|
3450 |
170,60 |
700 |
28” |
590 |
490 |
165 |
830 |
106 |
65 |
300 |
1186 |
- |
- |
254 |
4xø18 |
F-25 |
|
5000 |
252 |
800 |
32” |
630 |
565 |
190 |
902 |
106 |
80 |
300 |
1301 |
- |
- |
254 |
4xø18 |
F-25 |
|
6500 |
347 |
900 |
36” |
695 |
610 |
203 |
1010 |
110 |
80 |
350 |
1415 |
- |
- |
254 |
4xø18 |
F-25 |
|
8500 |
457 |
1000 |
40” |
770 |
675 |
216 |
1116 |
110 |
80 |
350 |
1555 |
- |
- |
254 |
4xø18 |
F-25 |
|
11500 |
580 |
1200 |
48” |
875 |
818 |
254 |
1334 |
110 |
100 |
350 |
1803 |
- |
- |
298 |
4xø23 |
F-30 |
|
15500 |
959 |
|
| |
|
|
|
|
|
|
