* This product is written on it casting (Made in Poland) and we are the only distributor in the arabic republic of egypt.

Print this Page
Send Email

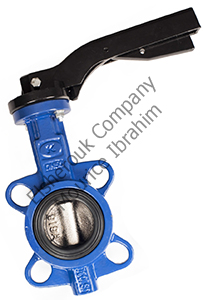

Butterfly Valve zBUT





body material

nominal
pressure

nominal
diameter

max
temperature

B

nodular cast iron
C
16 bar
DN
32-300
110°C*
B
10 bar
DN
350-600

*max allowable temporary temperature 120°C



FEATURES
  • leakproofness class - A acc. to EN 12266-1.
  • face-to-face dimension acc. to EN 558.
  • flanges PN10/PN16 acc. to EN 1092-2.
  • epoxy coating RAL5002 150 microns.
  • EPDM seat material.
  • environment-friendly.



APPLICATION
  • industrial cold and hot water installations and air installations.
  • other non aggressive mediums.
  • industrial heating installations.
  • shipbuilding industry.
  • power engineering.

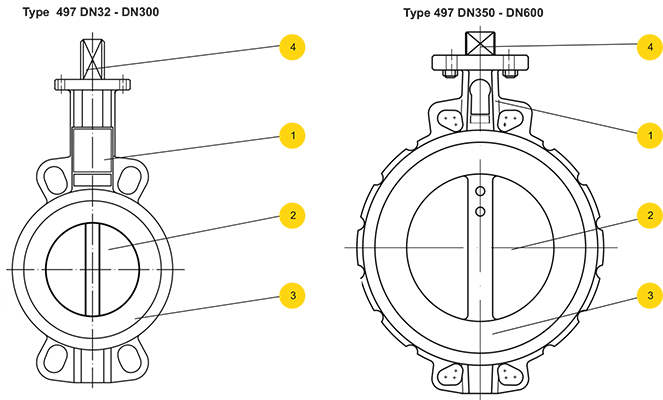

MATERIALS

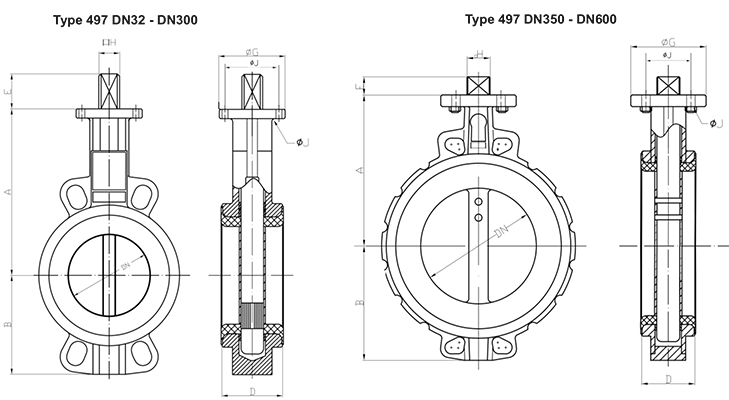

DIMENSIONS



DN

A

B

D

øG

E

H

øJ

n x øM

ISO

torque



mm

inch)

mm

Nm

kg
32
1 1/4”
116
60
33
65
32
7x7
50
4xø7
F-05
11
1.75
40
1 1/2”
125
64
33
65
32
9x9
50
4xø7
F-05
11
2.00
50
2”
132
75
43
65
32
9x9
50
4xø7
F-05
16
2.50
65
2 1/2”
137
86
46
65
32
9x9
50
4xø7
F-05
26
3.00
80
3”
153
93
46
65
32
9x9
50
4xø7
F-05
33
3.52
100
4”
175
105
52
65
32
11 x 11
50
4xø7
F-05
53
4.50
125
5”
187
120
56
90
42
14 x 14
70
4xø9
F-07
81
7.00
150
6”
210
142
56
90
42
14 x 14
70
4xø9
F-07
119
8.25
200
8”
237
169
60
125
36
17 x 17
102
4xø11
F-10
194
14.00
250
10”
275
203
68
150
38
22 x 22
125
4xø13
F-12
308
25.75
300
12”
305
233
78
150
38
27 x 27
125
4xø13
F-12
595
33.65
350
14”
334
260
78
150
45
27 x 27
125
4xø14
F-12
969
54.50
400
16”
361
307
102
150
50
27 x 27
125
4xø14
F-12
1307
89.85
450
18”
401
339
114
210
50
30 x 30
165
4xø22
F-16
1787
107.40
500
20”
480
368
127
210
65
36 x 36
165
4xø22
F-16
2288
155.75
600
24”
565
459
154
300
70
46 x 46
165
4xø22
F-16
3711
231.10
